| Power: | 1.5-11 Kw | Size: | 1100x1000x1500 Mm |
|---|---|---|---|
| Washing Capacity: | 20kg | Installation: | Free Standing |
| High Light: | coin washer and dryer,commercial coin operated washer |
||
1, open pocket, soft mounted washer extractor has steam heat type and electric heat type.
2, editable controller, Programs for greater efficiency and flexibility, or touch screen or Siemens PLC for option.
3, frequency adjustable LS converter, CE certified electric elements for safe operation.
4, frequency controlled motor runs stable.Variable wash and spin speeds minimizing programme times
5, 4mm thickness stainless steel outer drum, inner drum and high quality SS panels to anti rust, can be used even in very bad condition.
6, Compact design and easy access for maintenance.
7, Manufactured to ISO 9001-2015 Quality Standard.

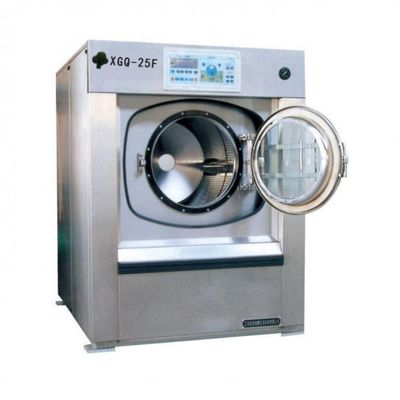

Commerical laundry washing machine
Our XGQ series commerical laundry washing machine is widedly used in hotel, restaurant, hospital, railway, garment factory, industry-mining enterprise and individual washing and dyeing field. It’s used for washing cotton, wool, woolen, chemical fiber and other fabrics.
Commerical laundry washng machine Features and Benefits
*User friendly programmable/touch screen operator controls.
*Programs for greater efficiency and flexibility
*Accurate control of water and supplies usage
*Variable wash and spin speeds minimizing programme times
*Reduction of pressure creasing through programmable extract speed
*Tested stainless steel elements ensuring long hygienic life performance
*Compact design and easy access for maintenance
*Manufactured to ISO 9001-2015 Quality Standard
Strong frame size 40*40*4mm(thickness), front wall thickness 16mm
4mm SS outerdrum, LG inverter, famous brand electric control parts
Main Specifications of the industrial washer extractor
|
Model |
XGQ-25F |
|
rated capacity (dry loading) |
25kg/55lb |
|
Drum D×L (inner size) mm |
∮810×520 |
|
CylinderD×L (inner size) mm |
∮870×615 |
|
washing/distributing speed rpm |
43/75 |
|
middle/high extracting speed rpm |
430/810 |
|
work cycle min. |
45 |
|
motor power KW (frequency converting and speed changing) |
3 |
|
power of electric heating pipe kw |
22.5 |
|
steam pipe(DN) mm |
20 |
|
cool/hot water pipe(DN) (DN)mm |
25 |
|
water consumption of one cycle kg |
400 |
|
steam consumption of one cycle kg |
20 |
|
power consumption of one cycle(frequency converting and speed changing) |
0.8(steamheating) 5(electricheating) |
|
tap water pressure Mpa |
0.2-0.4 |
|
steam pressure Mpa |
0.4-0.6 |
|
work pressure of compressed air Mpa |
0.4-0.6 |
|
dimension (L×W×H) mm |
1285×1150×1540 |
|
machine weight |
1100 |
|
