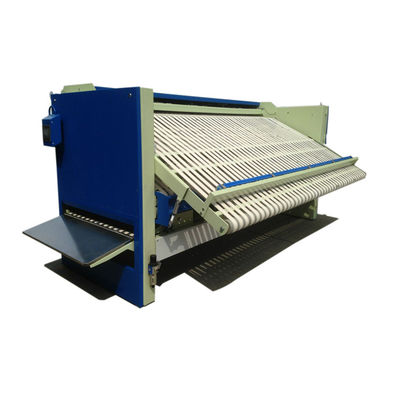

Safe Operation Laundry Sheet Folding Machine , Automatic Folding Laundry Machine

China Suzhou Evergreen Machines Co., Ltd certification
China Suzhou Evergreen Machines Co., Ltd certification
I'm Online Chat Now

Safe Operation Laundry Sheet Folding Machine , Automatic Folding Laundry Machine

Safe Operation Laundry Sheet Folding Machine , Automatic Folding Laundry Machine
Safe Operation Laundry Sheet Folding Machine , Automatic Folding Laundry Machine Safe Operation Laundry Sheet Folding Machine , Automatic Folding Laundry Machine Safe Operation Laundry Sheet Folding Machine , Automatic Folding Laundry Machine Safe Operation Laundry Sheet Folding Machine , Automatic Folding Laundry Machine

Large Image :  Safe Operation Laundry Sheet Folding Machine , Automatic Folding Laundry Machine

Product Details:
Place of Origin: China
Brand Name: Evergreen
Certification: CE
Model Number: ZD3300-V
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: export pallet/full packing, one 20' container can fit 3 sets of 100kg or 4 sets of 50kg washer extractors
Delivery Time: 20-40 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets on month
Detailed Product Description
Used For: Hotel, Hospital, Bed Sheets, Laundry Voltage: 380, 400, 450, 220
Warranty: 1 Year After-sales Service Provided: Video Technical Support, Free Spare Parts, Online Support, Field Installation
Operation: Full Automatic, Touch Screen Suitable: All Types Of Flatwork Ironer
Size: 4940*2532*1930 Weight: 1450 Kg
High Light:

automatic clothes folding machine

,

automatic ironing folding machine

Laundry folding machine

  1. With a big screen and intelligent control system, this automatic laundry folding machine has the interactive function.
  2.  Five times of folding can be finished under the monitor of computer controller; Times of horisontal folding and vertical folding can be programmed according to requirements for the linen.
  3. This laundry folding machine uses the high intelligence infrared testing system, instead of the traditional machinical pulse counting device.
  4. It can work together with various industrial ironing machines.
  5. With the function of double channels folding, this bed sheet folding machine can improve the ironing and folding capacity of small linen, and lower the energy consumption.
  6. It has self-diagnoisis function, perfect safe-protection system, and self-maintenance for testing points.
  7. Computer board uses relay output and it doesn’t need middel relay, which reduces faulty points and is easy for maintenace.
  8. All control components use 24V D, which is safe and reliable.
  9. All control valves are air controlled.
  10. Many safety switch ensure safe operation and maintenance.
    engeers check every details carefully



Specifications of the laundry folding machine:


Item Name Unit ZD3300 - V
Max. folding length Mm 3600
Max. folding width Mm 3300
Working capacity (normal sheet) M/min 30
Supply of pressure Mpa 0.5-0.7
Consumption of compressed air L/min 80
Rated input power KW 0.75+0.37
Power consumption Kw/h 0.6
Drainage of air compressor m3/min 0.3
External power wiring size Mm2 4 Provided by users
Dimensions (LxWxH) Mm 4940x2530x1930
Weight Kg 1450
