| Name: | Barrier Washing Machine | Capacity: | 100kg, 70kg, 50kg, 30kg |
|---|---|---|---|
| Material: | Stainless Steel 304 | Operation: | Full Automatic Or Manual |
| High Light: | 70kg barrier washer extractor,Pharmaceutical barrier washer extractor,70kg barrier washer equipment |
||
1. specially designed for hospital, non-dust industry, food industry, pharmaceutical industry, nuclear power station etc.
2. frequency adjust LS converter and frequency controlled motor keep it run stable.
3. programmable touch screen with English version, or Siemens PLC for option.
4. stainless steel drum and panels for strong and long time usage.

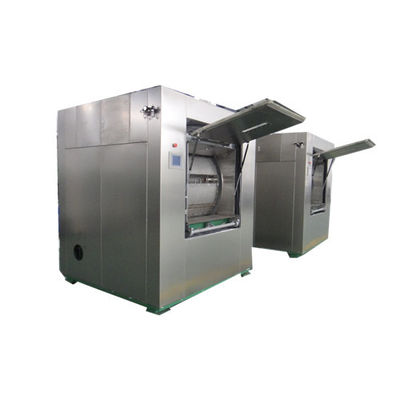

Hospital washing machine
Our BW series barrier washing machine is specially designed for hospitals, food industries, pharmaceutical industries, nuclear power stations. The washing area in laundry is separated into un-clean area and a clean area.
Clothes are loaded from the unclean area and unloaded from the clean area so that the materials can be treated against cross infection. It’s also called sanitary washing machine. So, it is an ideal laundry washing equipment for non-dust industries and hospitals.
Main features of hospital washing machine
The large touch screen with English operation interface, which ensures the dialogue between operator and the machine more convenient and reliable.
Auto-correction is controlled by the proximity switch so that the door can be positioned accurately when loading and unloading the barrier washers.
Double-bolt locking system adopted in the hospital washing machine. With self-lock and anti-lossen functions, Operation is safe and easy.
Specifications
|
Model |
BW-30 |
BW-50 |
BW-70 |
BW-100 |
|
Rated capacity |
30 |
50 |
70 |
85-100 |
|
Volume |
301 |
511 |
710 |
1000 |
|
Motor Power |
4 |
5.5 |
7.5 |
11 |
|
Washing speed |
40 |
40 |
40 |
30 |
|
Balancing Speed |
67 |
60 |
60 |
60 |
|
Mid-Extraction Speed |
375 |
340 |
340 |
340 |
|
High-Extraction Speed |
700 |
680 |
650 |
650 |
|
Compressed Air Pressure |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
|
Water consumption |
1000 |
1200 |
1250 |
1800 |
|
Stream consumption |
20 |
30 |
45 |
50 |
|
Electricity Consumption |
1.5 |
2.1 |
2.8 |
3.2 |
|
Air Flow of Compressor |
0.36 |
0.36 |
0.36 |
0.36 |
|
Dimension |
1450×1530×1800 |
1710×1640×1875 |
1810×1750×2000 |
1810×1990×2150 |
|
Weight |
1300 |
1600 |
2400 |
3000 |
