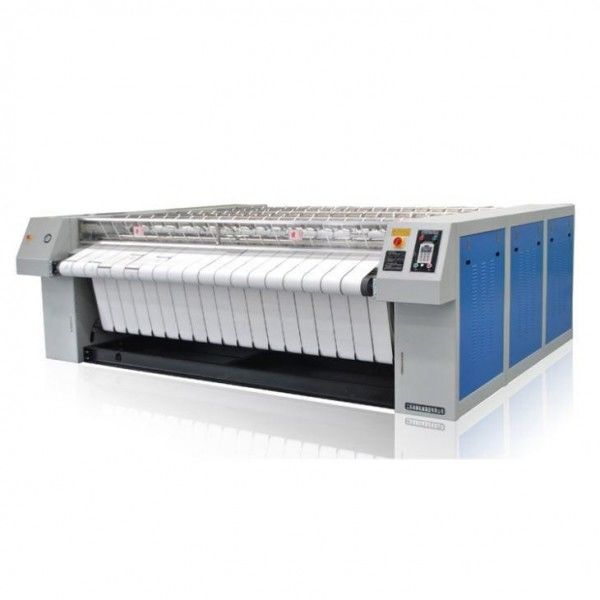

Conveyor Belt Sheet Ironing Machine Low Noise Running High Temperature Resistant

China Suzhou Evergreen Machines Co., Ltd certification
China Suzhou Evergreen Machines Co., Ltd certification
I'm Online Chat Now

Conveyor Belt Sheet Ironing Machine Low Noise Running High Temperature Resistant

Conveyor Belt Sheet Ironing Machine Low Noise Running High Temperature Resistant
Conveyor Belt Sheet Ironing Machine Low Noise Running High Temperature Resistant

Large Image :  Conveyor Belt Sheet Ironing Machine Low Noise Running High Temperature Resistant

Product Details:
Place of Origin: China
Brand Name: Evergreen
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: export pallet/full packing, one 20' container can fit 3 sets of 100kg or 4 sets of 50kg washer extractors
Delivery Time: 20-40 days
Payment Terms: T/T, L/C, Western Union
Detailed Product Description
Machine Size Mm: 840*1500*1240 Weight Kg: 400
Steam Consumption: 460/580Kg/h Water Trap Size: DN20mm
High Light:

flat work ironer laundry equipment

,

flat work ironer machine

Industrial Ironing Machine

1. The industrial ironing machine has one roll, two rolls, three rolls...with length of 2800mm, 3000mm, 3300mm
2. The roll flatwork ironer has steam heating type, electric heating type and gas heating type
3. The diameter of the stainless steel roll is 800mm, 4mm thickness.
4. The frame is built with high quality carbon steel primed and painted for long life.

Send Inquiry
  • Product Details
  • Inquiry

Industrial Ironing machine

The YZ series industrial ironing machine is ideal for medium to large size laundries including resort hospitality, health care and commercial laundries. This line of flatwork ironer produces high quality linen finishes easily and efficiently. It has high evaporation power and saves energy. The frame is built with high quality carbon steel primed and painted for long life.

The SS cylinder is 4mm thick, mirror polished and supported by heavy-duty lubricated bearings. A large efficient fan pulls evaporated moisture away from the cylinder of the flat work ironer laundry equipment . The compact design occupies very little space as the finished linen can be discharged to the front or in the back to a bed sheet folder.

Technical data of the Industrial Ironing machine

Item

Unit

YZIII-3300

YZIII-3000

YZIII-2800

Quantity of roller



three

three

three

Roller Diameter Length

mm

mm

800

3300

800

3000

800

2800

Ironing speed (variable)

m/min

0 - 10

0 - 21

0 - 21

Steam pressure

mpa

0.4 - 0.6

0.4 - 0.6

0.4 - 0.6

Steam inlet size

mm

DN40

DN40

DN40

Steam consumption

Kg/h

410

380

350

Motor power

Kw

2.2

2.2

2.2

Water trap size

mm

DN20

DN20

DN20

Dimension (LxWxH)

mm

4360x3400x1320

4060x3400x1320

4060x2400x1320

Weight

kg

4200

3700

3200
