| Capacity: | 100kg, 50kg, 25kg | Voltage: | 380, 400, 450, 220, 230 |
|---|---|---|---|
| Material: | Stainless Steel 304 | Warranty: | 1 Year |
| Heating: | Steam, Electric | After-sales Service Provided: | Online Support, Field Installation When Requested And Paid |
| Installation: | 100% Free Standing, No Foundation | Control: | Automatic Computer Control Or Manual |
| Used For: | Hotel, Restaurant, Laundry, Hospital, Factory, Industry, University | Function: | Washing And Extracting, Washing And Dying |
| High Light: | 25KG Hotel Laundry Washing Machine,75RPM Hotel Laundry Washing Machines,25KG front load washer |
||

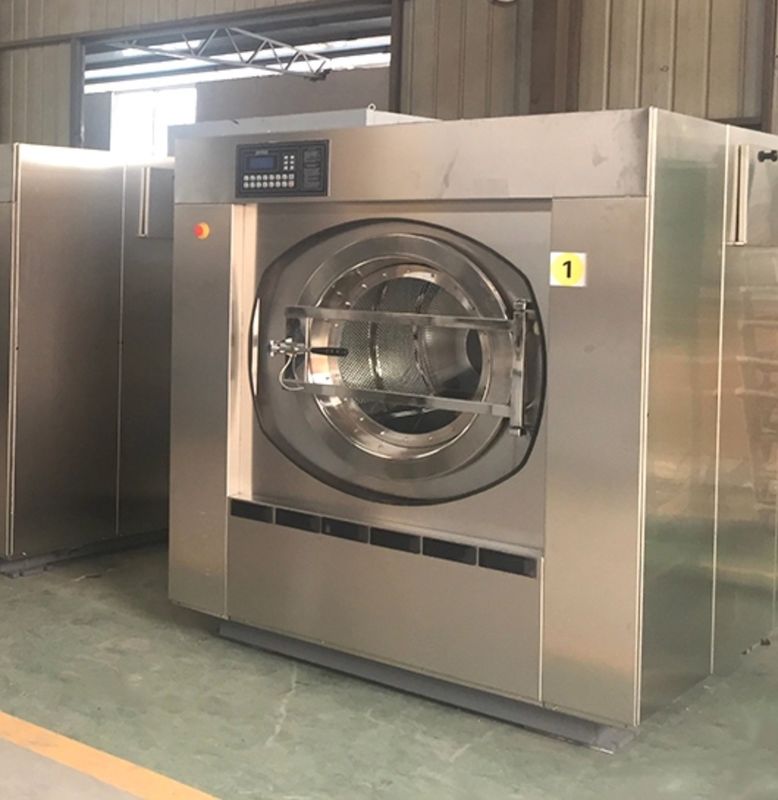

Stainless Steel 304 Full Automatic Hotel Laundry Washing Machines
Industrial washing machine
1. Industrial washing machines and Gas dryers, Fully automatic, microcomputer-controller, freely programmable, 30 possible programmes, operator could set flexible.
2. High quality stainless steel, good appearance, long life.
3. Full suspension shock structure, low shake, low noise, combination of shock absorbers and springs for maximum absorption, need no excessive foundations.
4. Imported bearing, precise and durable.
5. Fixed screws support for long-distance transportation, avoid shaking damage during transit.
6. High quality inverter system, easily realize washing and extracting frequency stepless adjusting.
7, Multiple sealing system, oil sealing, water sealing, stainless steel sealing.
8, Built-out bearing lubrication, simple operation, convenient maintenance.
9, Safety door interlock system, reduce fatigue, misuse and the risk.
| Model | XGQ-25F | XGQ-50F | XGQ-100F |
|
rated capacity (dry loading) |
25 | 50 | 100 |
|
Drum D×L (inner size) |
∮810×520 | ∮990×660 | ∮1240×840 |
|
CylinderD×L (inner size) |
∮870×615 | ∮1060×754 | ∮1322×953 |
| washing/distributing speed | 43/75 | 40/60 | 30/60 |
| middle/high extracting speed | 430/810 | 375/750 | 350/680 |
| work cycle min. | 45 | 45 | 45 |
|
motor power KW (frequency converting and speed changing) |
3 | 4 | 7.5 |
| power of electric heating pipe kw | 22.5 | 45 | |
| steam pipe(DN) mm | 20 | 20 | 25 |
| cool/hot water pipe(DN) (DN)mm | 25 | 25 | 40 |
| water consumption of cycle kg | 400 | 750 | 1800 |
| steam consumption of cycle kg | 20 | 30 | 50 |
| power consumption of cycle (frequency converting and speed changing) |
0.8(steamheating) 5(electricheating) |
1(steam heating) 7(electricheating) |
1.8 (steam) |
|
tap water pressure Mpa |
0.2-0.4 | 0.2-0.4 | 0.2-0.4 |
| steam pressure Mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| work pressure of compressed air Mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| dimension (L×W×H) mm | 1285×1150×1540 | 1440×1320×1700 | 1920×1700×2020 |
| machine weight | 1100 | 1550 | 2900 |
1. Fully automatic, mircrocomputer-controller, English operating panel , more than 30 programmes, reliable, high defree of automation and good aseismatic. You may also choose touch screen which has more than 60 programmes for our industrial washer and extractor.
2. Inverter with brand of LS, running smoothly and reliable. Frequency adjustable motor ensure long and stable running.
3. .Bearing with brand of TWB, imported from USA which is strong and long time service.
4. Stainless steel inner drum and outer drum which is different from some cheap industrial washing machine.
5.The soft mount suspension structure to absorb vibration, which ensures the laundry washing machine run smoothly with very low shaking and noise.
6. All closed structure, front loading and unloading, with two water drainages at the back of industrial washing machine to recycle water and avoid damage to environment.
7. Fixed screws support for long-distance transportation, avoid shaking damage during transit.
