Product Details:
Payment & Shipping Terms:
|
Capacity: | 100kg | Material: | SS 304 |
---|---|---|---|
Control: | PLC | Machine Weight: | 2900kg |
High Light: | steel drum industrial clothes washer,230lb industrial clothes washer,7.5KW industrial washing equipment |

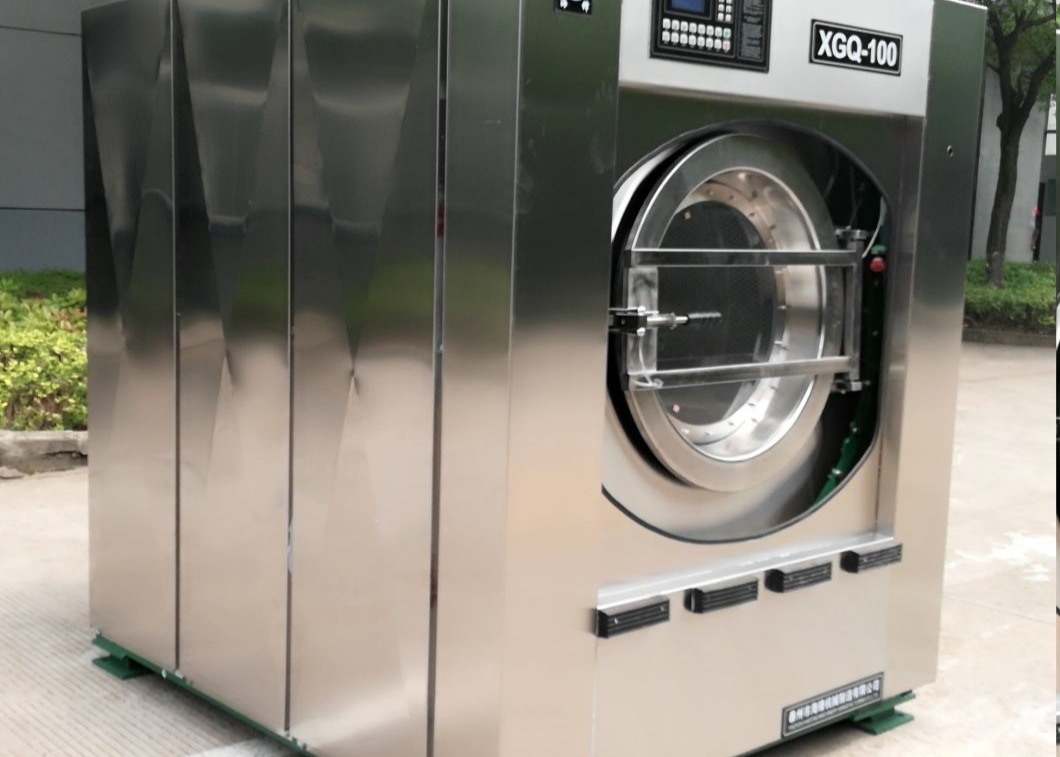

Product Description of industrial washing and dyeing machine 100kg
1. Full automatic, microcomputer-controlled, 30 programmers. With Siemens PLC, customers can make and save as many programs as they want. Programable washing rpm, extract rpm, temp program, waterlevel program and all parameters are visiable on the screen. Customers can update or modify all programs by USB.
2. 100% Free standing, foundation is not needed.
3. Stainless steel inner drum and outer panel, good appearance, long service life.
4. Swiss SKF or American TWB bearings
5. Frequency controlled motor
6. Safety pneumatic lock system.
7. Each drum tested by dynamic balance machine and the gravity deviation no more than 20g.
8. Full suspension shock structure, combination of shock absorbers and springs for maximum absorption.
9. Heating type: steam or electricity
10. Customized industrial washing machine is available, like small door for dyeing industry, flow meter, see above pictures.
Main specification for industrial washing and dyeing machine
Model | XGQ-100F |
rated capacity (dry loading) | 100kg/230lb |
drum D×L (inner size) mm | ∮1240×840 |
cylinderD×L (inner size) mm | ∮1322×953 |
washing/distributing speed rpm | 30/60 |
middle/high extracting speed rpm | 350/680 |
work cycle min. | 45 |
motor power KW (frequency converting and speed changing) |
7.5 |
power of electric heating pipe kw | |
steam pipe(DN) mm | 25 |
cool/hot water pipe(DN) (DN)mm | 40 |
water consumption of one cycle kg | 1800 |
steam consumption of one cycle kg | 50 |
power consumption of one cycle(frequency converting and speed changing) | 1.8 (steam) |
tap water pressure Mpa | 0.2-0.4 |
steam pressure Mpa | 0.4-0.6 |
work pressure of compressed air Mpa | 0.4-0.6 |
dimension (L×W×H) mm | 1920×1700×2020 |
machine weight
|
2900 |
