Product Details:
Payment & Shipping Terms:
|
Name: | Commercial Laundry Machines | Material: | Stainless Steel |
---|---|---|---|
Installation: | Free Standing | Warranty: | 1 Year |
High Light: | 130kg freestanding washing machine,130kg hotel washing machine,30RPM hotel washing machine |
1. Anti-Vibration structure spring. Shocks absorption.
2. Korea LS inverter and all CE certified electric elments.
3. Frequency controlled motor.
4. American TWB bearing or Swiss SKF bearing.
5. Large door opening for easy loading and unloading.
6. SUS 304 stainless steel cabinet, drum, soap box and panels.
7. Easy access to all parts for maintenance.
8. 5 group magnetic valve for customers to add more chemicals.
9. Prepared for automatic and manual controller.

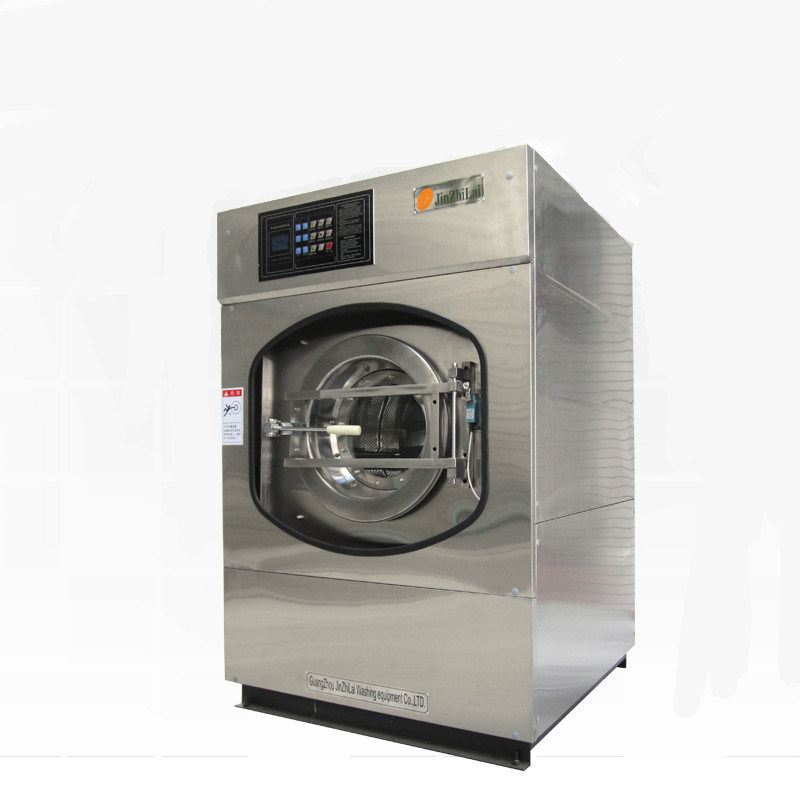

Industrial laundry equipment
1. Safety and reliability and perfect anti-shock due to the computer control. Customer may choose PLC for program at will and see all prameters on the screen of the industrial washer extractor.
2. Suspension structure is adopted in the design of damping system, it ensures the industrial washing machine to get a perfect running even on higher floors.
3. The design of the through drum and single door enables users to load and unload with ease. The labor intensity is lightened and washing quality is improved.
4. Fully closed design and the draining pipe arranged at the backside of the laundry equipment can make the pollution to the environment minimized. The drum and the housing are made of stainless steel with good quality so that stain resistance and durability is guaranteed.
Main Parameters of the industrial laundry equipment
Model |
XGQ-130F |
Rated capacity (dry loading) kg |
130 |
Inner drum (D×L) |
∮1350×900 |
Outer drum (D×L) |
∮1434×1035 |
Washing/distributing speed rpm |
30/60 |
Middle extracting speed rpm |
310/640 |
Cycle min |
45 |
Motor power kw |
15 |
Power of electric heating pipe kw |
---- |
Steam pipe dia. DN |
40 |
Cool/hot water pipe dia. |
50 |
Water consumption per cycle kg |
1900 |
Steam consumption per cycle kg |
60 |
Power consumption per cycle(frequency convency and speed changing) kw.h |
2.0 |
Tap water pressure MPa |
0.2-0.4 |
Steam pressure Mpa |
0.4-0.6 |
Compressed air pressure Mpa |
0.4-0.6 |
Dimension (L ×W×H) mm |
2150×1810×2000 |
Weight kg |
3000 |
