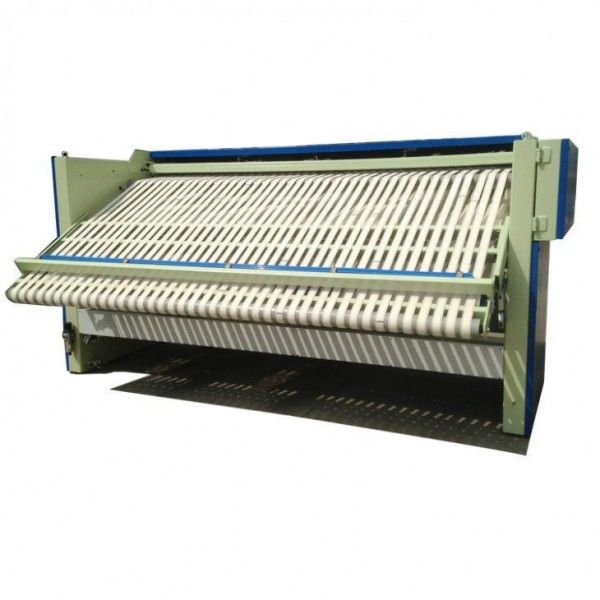

Advanced Ironing Folding Machine , Automatic Laundry Cloth Folding Machine

China Suzhou Evergreen Machines Co., Ltd certification
China Suzhou Evergreen Machines Co., Ltd certification
I'm Online Chat Now

Advanced Ironing Folding Machine , Automatic Laundry Cloth Folding Machine

Advanced Ironing Folding Machine , Automatic Laundry Cloth Folding Machine
Advanced Ironing Folding Machine , Automatic Laundry Cloth Folding Machine

Large Image :  Advanced Ironing Folding Machine , Automatic Laundry Cloth Folding Machine

Product Details:
Place of Origin: China
Brand Name: Evergreen
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: export pallet/full packing, one 20' container can fit 3 sets of 100kg or 4 sets of 50kg washer extractors
Delivery Time: 20-40 days
Payment Terms: T/T, L/C, Western Union
Detailed Product Description
Max. Folding Width: 3300 Mm Working Capacity (normal Sheet): 30 M/min
Max. Folding Length: 3600 Mm Power Consumption: 0.6 Kw/h
High Light:

automatic clothes folding machine

,

automatic ironing folding machine

Commercial Laundry Folding Machine

1. High speed embedded microprocessor. More advanced than SCM (Single chip micyoco)270°rotation, Easy to control.
2. High speed pulse input to detect the speed and length of cloth, folding accurately.
3. Total error detection,I/O testing function.
4. Password protection to prevent parameters being changed.
5. Multi-lauguage menu.
6. Check-up speed of machine running.
7. Static eliminator available to avoid static generation.



Commerical laundry folding machine

Our bed sheet folding machine is applied on folding big linen ironed or dried, such as sheets, quilt covers as well as table cloth. Low noise, low energy consumption, good performance, beautiful appearance and reasonable design are the features of the laundry fold machine.



Advantages of the commercial laundry folding machine

* Big screen and intelligent control system adopted , the machine has dialogic function.

* Folding programs can be selected according to different type of linen. 2-5 folds can be performed under the control of computer.

* DC24V on monitor block can ensure performance safe and maintainance easy.

* It runs fast and reliably and free of pollution to surroundings, thanks to pneumatic valves adopted.

* The output of controller is done via relay and no need of intermediate relay, which is easy for service and reduces chance of fault.

* Adjustable speed can adapt corresponding industrial ironing machine, and it can work together with laundry ironing machine, and folding speed is adjustable according to ironing speed.



Main data of the commerical laundry folding machine

Item Name

Unit

ZD3300 - V

Max. folding length

Mm

3600

Max. folding width

Mm

3300

Working capacity (normal sheet)

M/min

30

Supply of pressure

Mpa

0.5-0.7

Consumption of compressed air

L/min

80

Rated input power

KW

0.75+0.37

Power consumption

Kw/h

0.6

Drainage of air compressor

m3/min

0.3

External power wiring size

Mm2

4

Provided by users

Dimensions (LxWxH)

Mm

4940x2530x1930

Weight

Kg

1450
